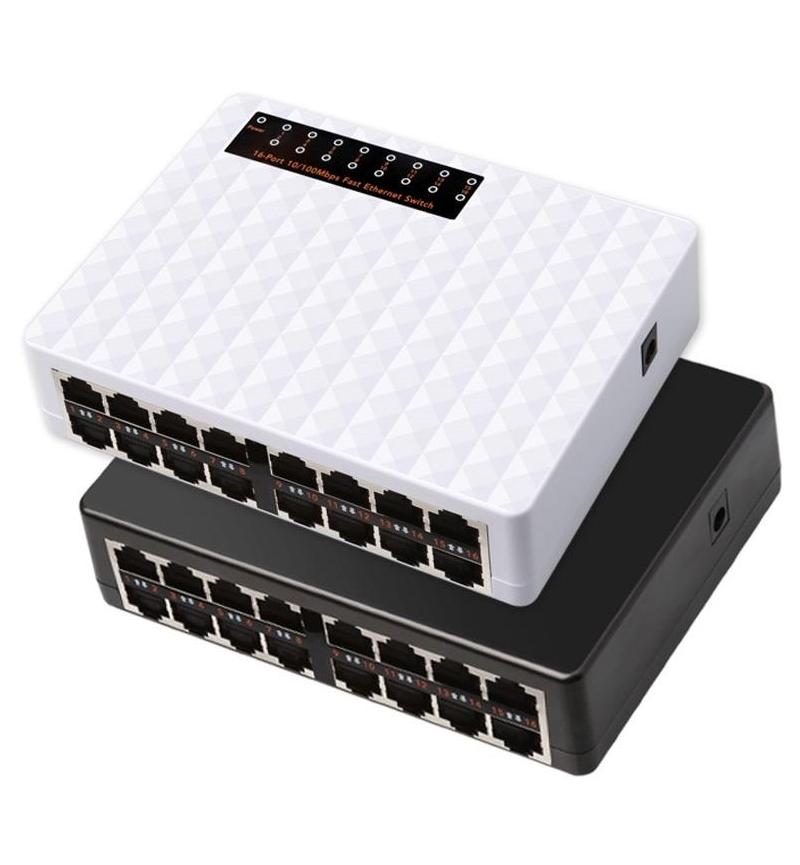

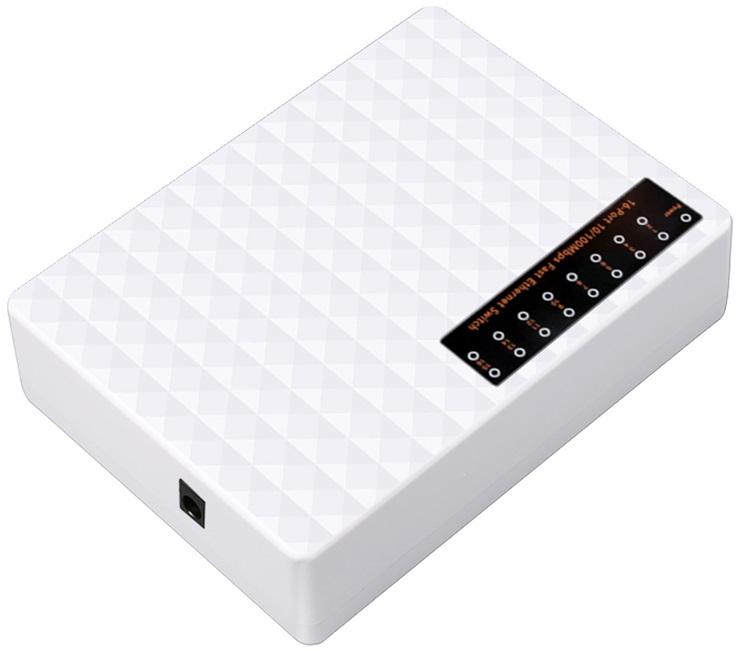

Microworld 16 Port 10/100 Switch

Specifications

• 16 10/100 Mbps Fast Ethernet Switch
• With the TXE102 Fast Ethernet Switch
• You can easily expand your business or home network by adding more computers and devices
• Each achieving speeds up to 200 Mbps per port in full-duplex mode

Easy of Use

• The TXE102 does not require any configuration or software, making installation simple and hassle-free
• With Auto-MDI/MDI-X support, there is no need for crossover Cables when you are connection to another switch or to a Computer
• Additionally, the TXE102 will automatically sense if the connected network devices are running at 10Mbps or 100Mbps
• And adjust accordingly
• Equipped with a comprehensive LED display, you can monitor the status and activity of every port at a glance
• Model: TXE102

Hardware Features

• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Interface: 16 10/100Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX
• Forwarding Mode: Store-and-Forward
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m
• Power Supply: 100-240VAC, 50/60H
• LED: Power, Link/Act
• Fanless: Yes
• Performance
• Switching Capacity: 3.2Gbps
• Packet Filtering/Forwarding Rate:148,800 pps for 100M
• 14,880 pps for 10M
• MAC Address Table: 8K
• Certification: CE, FCC, RoHS
• Environment
• Operating Temperature: 0°C - 40°C (32°F-104°F)
• Storage Temperature: -40°C-70°C (-40°F-158°F)
• Operating Humidity: 10%-90% RH non-condensing
• Storage Humidity; 5%-90% RH non-condensing
