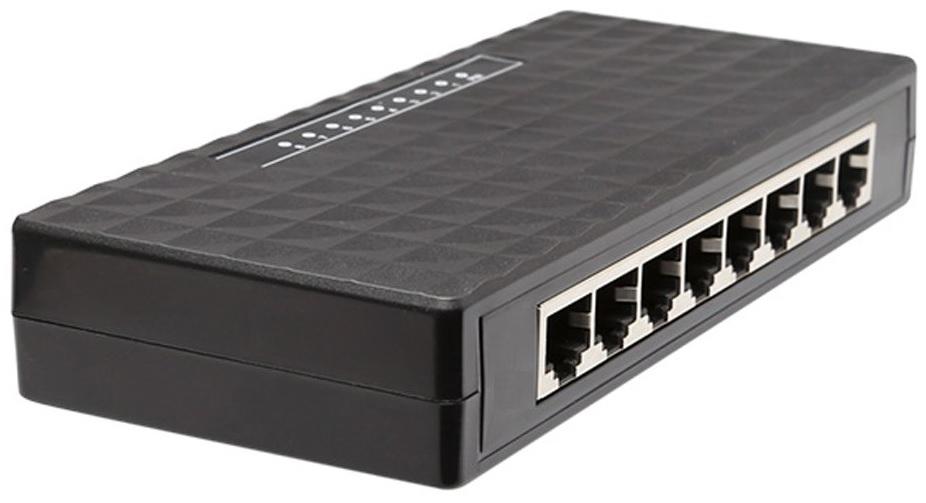

Microworld 8 Port 10/100 Switch
  • Microworld 8 Port 10/100 Switch
Microworld 8 Port 10/100 Switch

Microworld 8 Port 10/100 Switch

$20.00 USD

About This Product

This product is available on order and will be delivered within 1-4 working days. Deadline for deposits is from Monday to Saturday at 4pm. Collection in Harare can be done at our office for free at Margolis Plazza, Cnr Speke Ave & Harare Street, Shop 208A, Second Floor. Deliveries to other cities are handled by a courier service at cost.
Microworld 8 Port 10/100 Switch Product Features & Specifications

8 PORT 10/100 NETWORK SWITCH - TXE020

Product specification

  • Model number: TXE020
  • Chipset: IP178G
  • Port number: 8 port 10/100M Auto MDI-MDIX RJ45
  • Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3 x IEEE 802.3az
  • Network Media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
  • Data Rate: 10/100M
  • Forwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
  • LED Indicator: 10/100Mbps(Link/Act),Power
  • Dimension: 159 x 71 x 30mm
  • Power Input: DC5V/500mA
  • Power Consumption: Max1.5W
  • Environment
  • Operating Temperature: 0 - 40
  • Relative Humidity: 10%-90% (non-condensing)
  • Storage Temperature: -40 - 70
  • Relative Humidity: 5%-90% (non-condensing)
  • Chipset Feature :
  • 8 port Embedded 10/100 PHY Switch Controller
  • Support 8 100BaseTX or 6 100Base TX + 2 FX
  • Support Auto MDI-MDIX function
  • Power Management Tool (PWMT)
  • APS, auto-power saving while Link-off
  • IEEE 802.3az protocol based power saving & 10Mbps Te for 10Mbps
  • WOL+, light traffic power saving - PWD, force-off power saving
  • Support Auto Factory Test (AFT)
  • Single Power 3.3V supply
  • Built in Vcore Regulator
  • Two Priority queues per port
  • Support 802.1p & DiffServ based QoS
  • QoS
  • Port base
  • 802.1p
  • IP DiffServ IPV4/IPV6
  • TCP/UDP port number
  • Pins configure ports priority (VIP port)
  • Support max forwarding packet length 1552/1536 bytes option
  • Support port mirror function
  • Support 1k MAC address Support broadcast storm protection
  • Support port trunking (LACP)
  • Support 16 VLAN (IEEE Std 802.1q)
  • Port-based/Tagged-based VLAN
  • Support insert, remove tag
  • Built-in 50 ohm resistors for simplifying BOM
  • 85nm Process
  • Package and operation temperature
  • IP178G: 68 Pin QFN, 0 - 70
