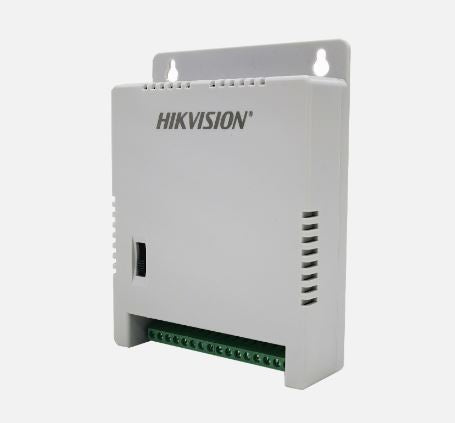

Hikvision 12VDC 10Amp 8 Channel CCTV Power Supply Input:110-220VAC, output: 12VDC 10A/8ch, PTC 1m AC cord with SA plug, Retail Box, 1 Year Warranty.
Highlights
• Multi-channel SMPS
• 60 W, 12 VDC/1 A per channel
• Over current/short circuit/over voltage protection
• Good EMC performance
• Compact size; applicable to cameras
• 150 to 285 VAC wide voltage input
Specifications
• Stock Code: DS-2FA1205-C8(EUR)
• Description: Hikvision 12VDC 10Amp 8 Channel CCTV Power Supply Input:110-220VAC
Parameters
• Appearance: White
• Dimension: 144 mm × 109.5 mm × 33 mm (5.67" × 4.31" × 1.30")
• Operating Conditions: 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
• LED Indicator: Green
• Input: 150 to 285 VAC, 47 Hz to 63 Hz
• Output: 12 VDC/1 A per channel
• Ripple & Noise 150 MVp-P: 0.15 Vp-p (150 mV)
• AC Input Connector: C8
• DC Output Connector: DC Plug: grid terminal
• Storage Conditions: -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
• Cable Length Compensation:
• Normal: 12 VDC
• Long: 13.5 VDC
• Ex-Long: 15 VDC
