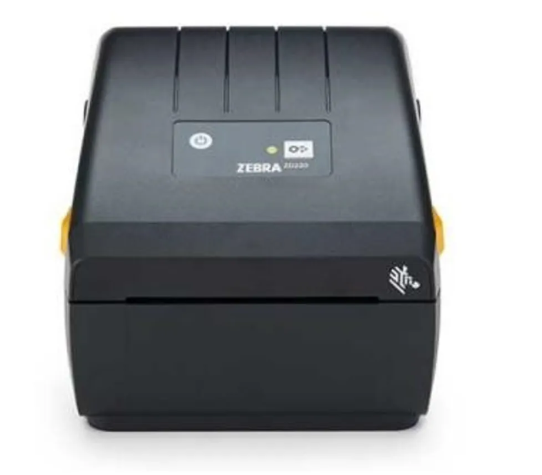

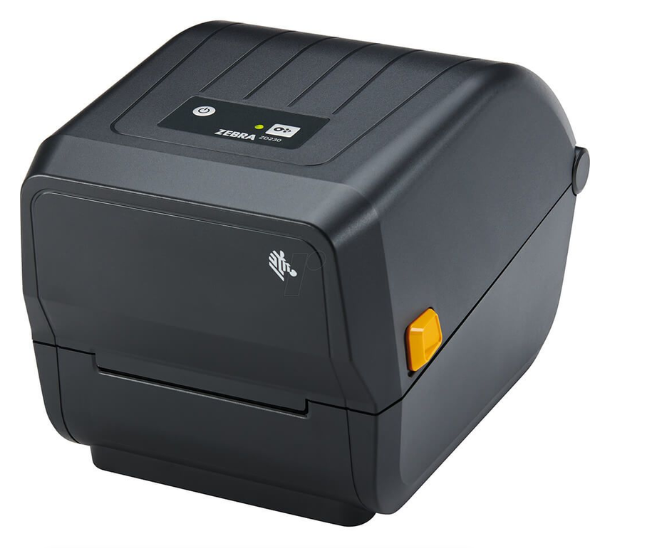

The ZD230 desktop printer gives you extra features and reliable operation. Engineered with Zebra quality, it boasts a dual-wall construction and is built to last for years, providing you with an outstanding return on investment.
Features:
Just the features you need: This 4-inch printer produces labels quickly, up to 6” per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status. Choose from direct thermal or thermal transfer models, and add an optional factory-installed peeler or cutter. The ZD230 features Print DNA Basic, a core set of software applications and capabilities to deliver a cost-effective and dependable print experience. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.
Get printing quickly: The ZD230 is simple to install and begin printing—right out of the box. The ZD230 can accommodate a 300 M ribbon roll to lengthen the time between media changes. And, Zebra’s OpenACCESS clamshell design expedites media replacement. It’s also ENERGY STAR® qualified to reduce your operational expenses.
Specifications:
Packaging data
Quantity per pack: 1
Ports & interfaces
USB 2.0 ports quantity: 1
Connectivity technology: Wired
Bluetooth: No
USB port: Yes
Ethernet LAN: Yes
Wi-Fi: No
Design
Product colour: Black
Display: No
Power
AC input voltage: 100 - 240
AC input frequency: 50 - 60
Packaging content
Cables included: AC
Operational conditions
Operating relative humidity (H-H): 10 - 90
Storage relative humidity (H-H): 5 - 95
Storage temperature (T-T): -40 - 60
Operating temperature (T-T): 4.4 - 41
Printing
Print technology: Thermal transfer
Maximum resolution: 203 x 203
Print speed: 152
Maximum printing width: 104
Colour: No
Paper handling
Maximum roll diameter: 127
Core diameter: 12.7
Maximum label length: 0.991
Ribbon length: 300
Media thickness: 0.08 - 0.1905
Ribbon width: 109.2
Maximum label width: 112
Supported paper width: 25.4 - 112
Performance
Internal memory: 128
Flash memory: 256
Page description languages: EZPL,XML,ZPL II
Built-in barcodes: 1D,2D,AZTECCODE,CODABAR (NW-7),Code 11,Code 128 (A/B/C),Code 39,Code 49,Code 93,Data Matrix,EAN13,EAN8,Industrial 2/5,Interleaved 2/5,MaxiCode,PDF417,POSTNET,QR Code,UPC-A,UPC-E
Number of fonts: 23
Certification: IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Technical details
Sustainability certificates: ENERGY STAR
What's in the box
1 x Zebra ZD230 Wired Thermal Transfer Printer: 203 dpi, USB, Ethernet
