M-Link 2D Wireless Bluetooth barcode scanner

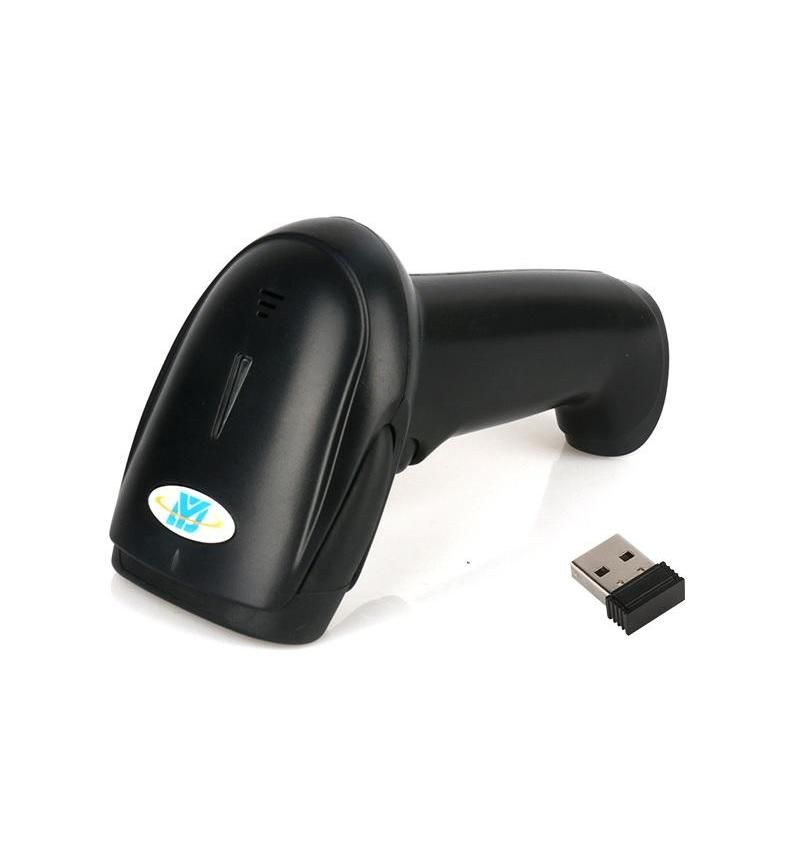

DS6100CB Handheld 2D Barcode scanne is a high-performance 2D Wireless Bluetooth barcode scanner with leading CMOS image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, Mobile payment, express delivery, inventory management, food traceability, asset Inventory, etc

Features

• Ergonomic design, comfortable using
• Read all mainstream 1D 2D barcodes in the market easily. (4mil)
• Interface: USB, wireless 2.4G, Bluetooth
• Dual mode: wired, wireless, Ultra-low power consumption
• Transmission distance 100m, intelligent automatic connection when it’s beyond range, not manual setting
• Widely used in supermarket, warehouse, mobile payment, chain stores

Application

• Supermarket
• Warehouse
• Mobile Payment
• Retail Chain
• Courier Health Care
• Cable Interface
• DS6100CB scanner must be connected with terminals, PC host, POS and Android host etc

Performance

• Light Source: Red Light LED 625±10nm(aim), 5600K LEDs( Lighting)
• CPU: 32-bit
• Resolution: 640 x 480
• Resolution: 4mil/0.1mm(PCS90%,Code 39)
• Decoding Speed: 25CM/S
• Scan Mode: Manual ,Continuous, Auto sense
• Scan angle: Test Conditions:CODE39, 10mil/0.25mm, PCS90%
• Roll±360 , Pitch±50, Skew±50
• Print Contrast Signal: 25%
• Ambient Light: Dark environment, indoor natural light
• Wireless Communication Mode: Synchronization , storage
• Wireless Transmission Distance: 2.4GHz,100m; Bluetooth,30 m(Open distance)
• Storage: 16Mb (over 100,000 barcodes )
• Battery Capacity: 2000mAh
• Battery Charging Time: About 7 h
• Continuous Working Time: =20h
• Symbologies: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128,
• Code 39,Code 93,Interleaved 2 of 5,Matrix 2 of 5,
• Industrial 2 of 5, Standard 2 of 5(IATA25) ,Codabar(NW-7,etc
• 2D: QR Code, Micro QR Code, Data Matrix,PDF417,etc
• Physical Parameter
• Weight: 160g(without cable)
• Dimension: L150mm x W70mm x H95mm
• Communication: USB, wireless 2.4G, Bluetooth 4.2
• Interface Type: USB
• Power Supply: DC 5V@150mA (work)

Accessories List

• Cable: USB, connect the scanner to a host device and charging
• Receiver: Used to receive and transmit scanner data
