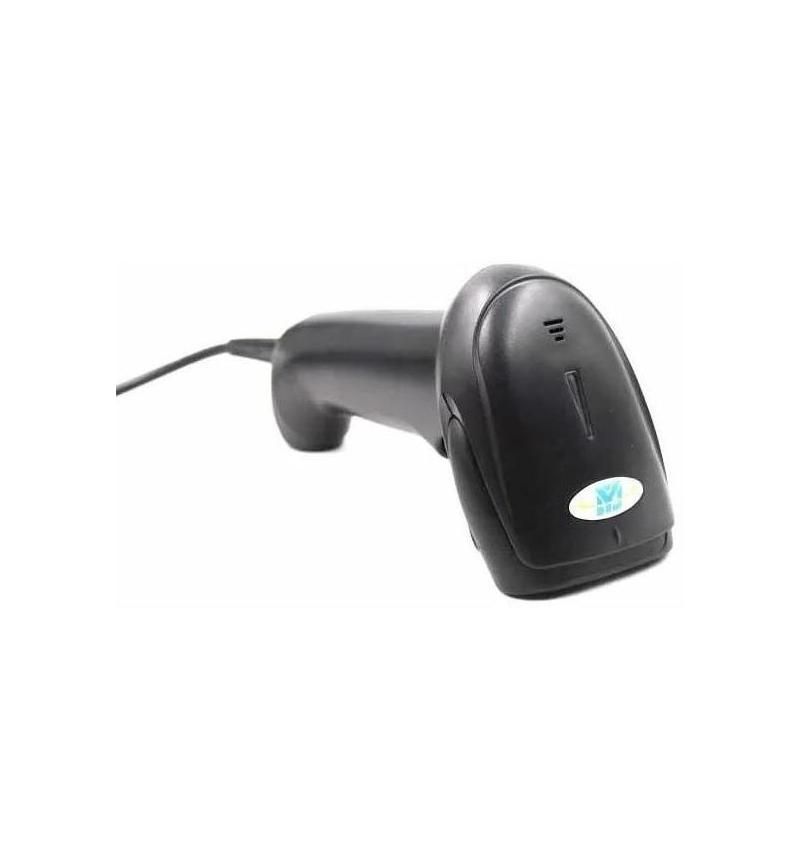

M-Link USB 2D Barcode Handheld Scanner

High Light: Cmos Barcode Scanner, Barcode Scanner Gun. DS6100 10mm-500mm Depth Field 32-bit USB/RS232 Wired Barcode Scanner 2D Handheld Barcode Reader. DS6100 is a High-Performance 2D Barcode Scanner with leading CMOS Image recognition Technology. It can easily read the paper, goods, screen and other media Barcodes. Widely used in Manufacturing, Warehouse, Logistics, Health Care, Retail Chain, Mobile Payment, Express Delivery, Inventory Management, Food Traceability, Asset Inventory, etc

Features

• Ergonomic design, comfortable using, cost-effective.
• Read all mainstream 1D 2D barcodes in the market easily. (4mil)
• Interface: USB.
• Support multiple languages and systems
• Support USB barcode information transmission. ( languages customization)
• Widely used in supermarket, warehouse, mobile payment, chain stores.

Application

• Supermarket
• Warehouse
• Mobile payment
• Retail chain
• Courier
• Health care

Physical Parameter

• Weight: 110g(without cable)
• Dimension: L150mm x W70mm x H95mm
• Interface Type: USB
• Communication Way: USB (USB-KBW, USB-COM)
• Power Supply: DC 5V@130mA(work)

Performance

• Scan type: CMOS
• Light source: Red light LED 625±10nm(aim),5600K LEDs(lighting)
• CPU: 32-bit
• Resolution: 640 x 480
• Resolution: 4mil/0.1mm (PCS90%, Code 39)
• Scan Tolerance: 10CM/S
• Depth of Field: 10mm-500mm
• Scan Mode: Manual, Continuous, Auto sense
• Scan Angle: Roll 360, Pitch±60, Skew±60 (PCS90%, Code 39,10mil/0.25mm)
• Print Contrast Signal: 25%
• Ambient Light: Dark, indoor natural light
• Symbologies: 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39
• Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Codabar(NW-7), MSI, etc
• 2D: QR Code, PDF417, Data Matrix, etc

Accessories List

• Data Cable: USB, Connect the Scanner to a Host Device
