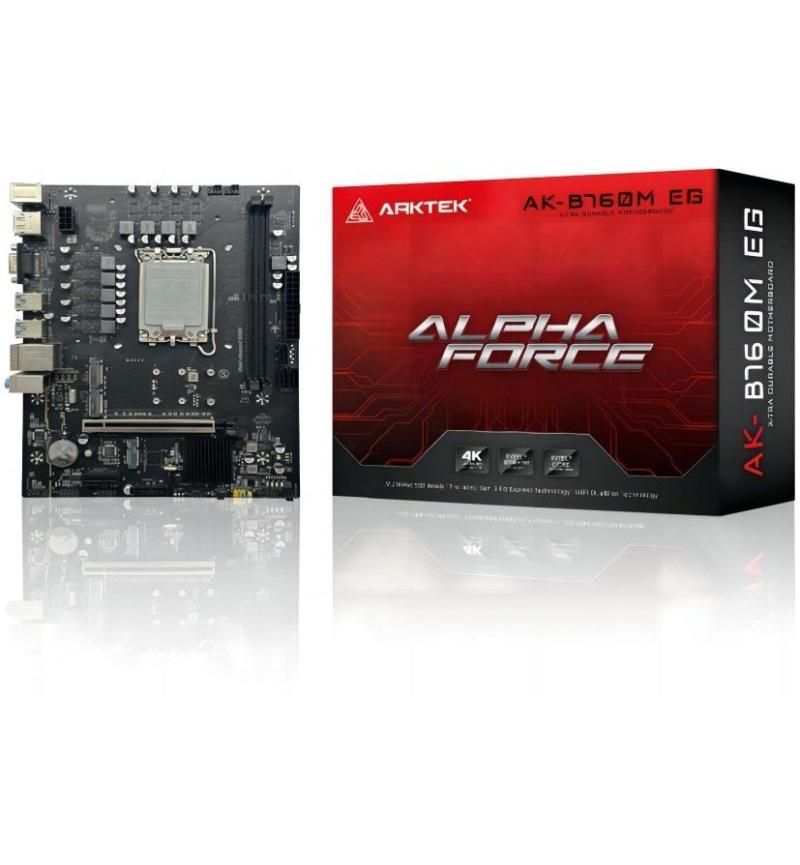

Arktek Intel B760 1700 Dual Channel DDR5 Motherboard

Specifications

• Intel B760
• Model: AK-B760M EG
• Socket: LGA1700
• Chipset: Intel B760
• Memory Support: Dual Channel DDR5
• CPU Support: Support Intel Gen 12 and Gen 13 Processor for LGA 1700 Socket
• Chipset: Intel B760 Chipset
• On-Board Graphics: Integrated Graphics Processor-Intel HD Graphics Support
• Memory: Dual Channel DDR5 DIMM 6800MHz, Max up to 128GB (Single Channel Max up to 64GB)
• DIMM: 2 x Memory Slots
• Graphics Ports: VGA, HDMI, DP
• LAN: 1 x Realtek 8111H/8106E 100/1000LAN Optional
• Audio: Built-In 6-Channel HD Audio Chip
• SATA: 3 X SATA3.0 2 X M.2 (1 x M.2_SATA)
• Internal I/O: 2 x USB Connector, can Support 2 x USB 2.0 & 2 x USB 3.0
• Expansion Slots: 1 x PCI Express x16 Slot 1 x PCI Express x1 Slot
• Form Factor: Micro-ATX (19 x 24 cm)
• OS Support: Support Windows 7 / 8 / 8.1 / 10(x64)
• Mounting: 6 Mounting Holes

Accessories

• 1 x SATA Cable
• 1 x I/O Backboard
• 1 x User Manual
• NO DRIVERS
