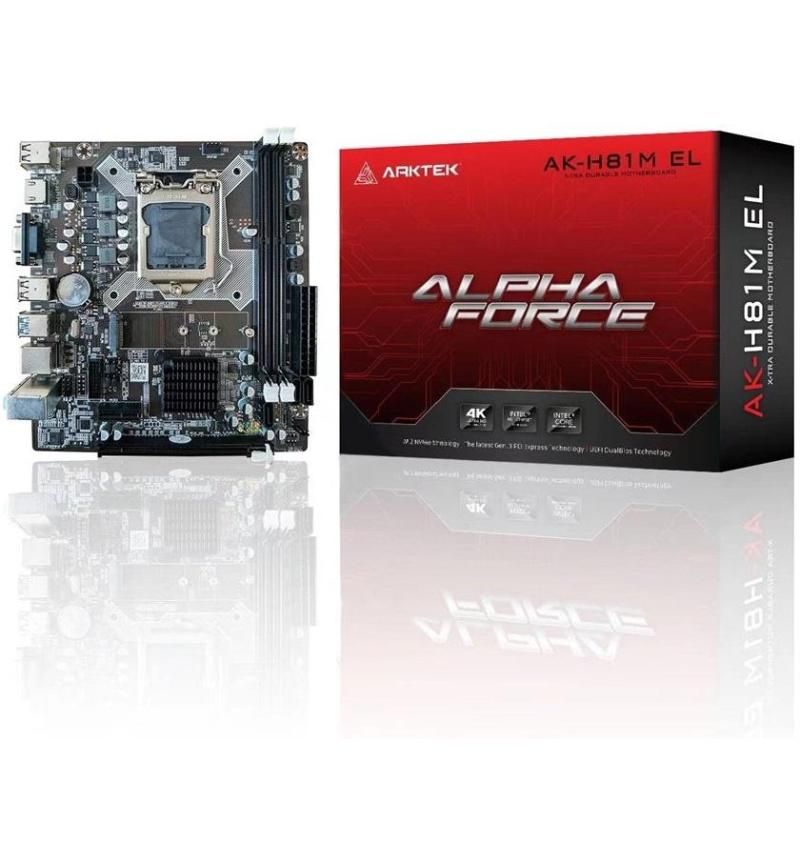

Arktek Intel H81 Chipset 1150 Dual Channel DDR3 Motherboard

Features

• CPU Support: Support Intel Core i7/i5/i3/Pentium/ Celeron Processors in the LGA1150 Package
• Support Intel 4th Generation Multi-Core Processors
• Chipset : Intel H81 Chipset
• On-Board Graphics: Integrated Graphics Processor
• Memory: Dual Channel DDR3 1066/1333/1600MHz, Supports Non-ECC, Un-Buffered Memory
• DIMM: 2 x Memory Slots (Max. up to 8GB each)
• LAN: Onboard Realtek RTL8105E/8111E Gigabit 100/1000 Mbps (Optional)
• Audio: Onboard Realtek 662 6-Channel HD Audio Codec Front Panel Audio-Out, Mic-In Jack
• SATA: 3 x SATA, 1 x M.2 Supports NVME+NGFF
• Back Panel I/O Ports: 1 x VGA Port 1 x HDMI Port
• 4 x USB 2.0 Port
• 2 x USB 3.0 Port
• 1 x LAN Jack
• 3 x Audio Jack (Line in / Line Out / Mic In)
• ON-Board Pinheaders /Connectors: 1 x USB 2.0 Pinheader Supports Additional
• 2 USB 2.0 Ports
• 1 x Front Panel Audio Pinheader
• Slots: 1 x PCI Express x16 Slot
• BIOS: UEFI BIOS
• Form Factor: Micro-ATX (19 x 17 cm)
• Mounting: 6 Mounting Holes

Accessories

• 1 x SATA Cable
• 1 x I/O Backboard
• 1 x User Manual
• 1 x Driver CD
